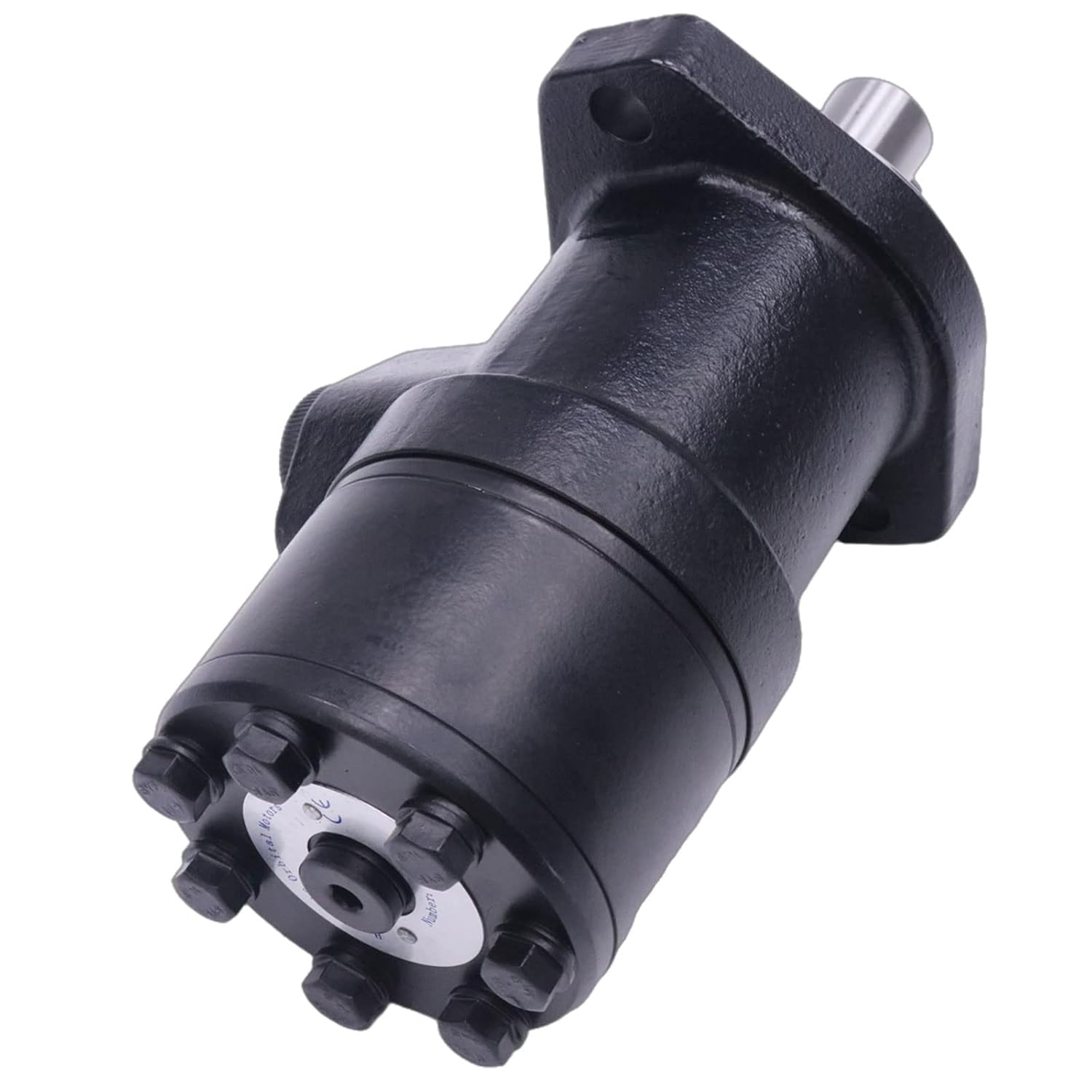

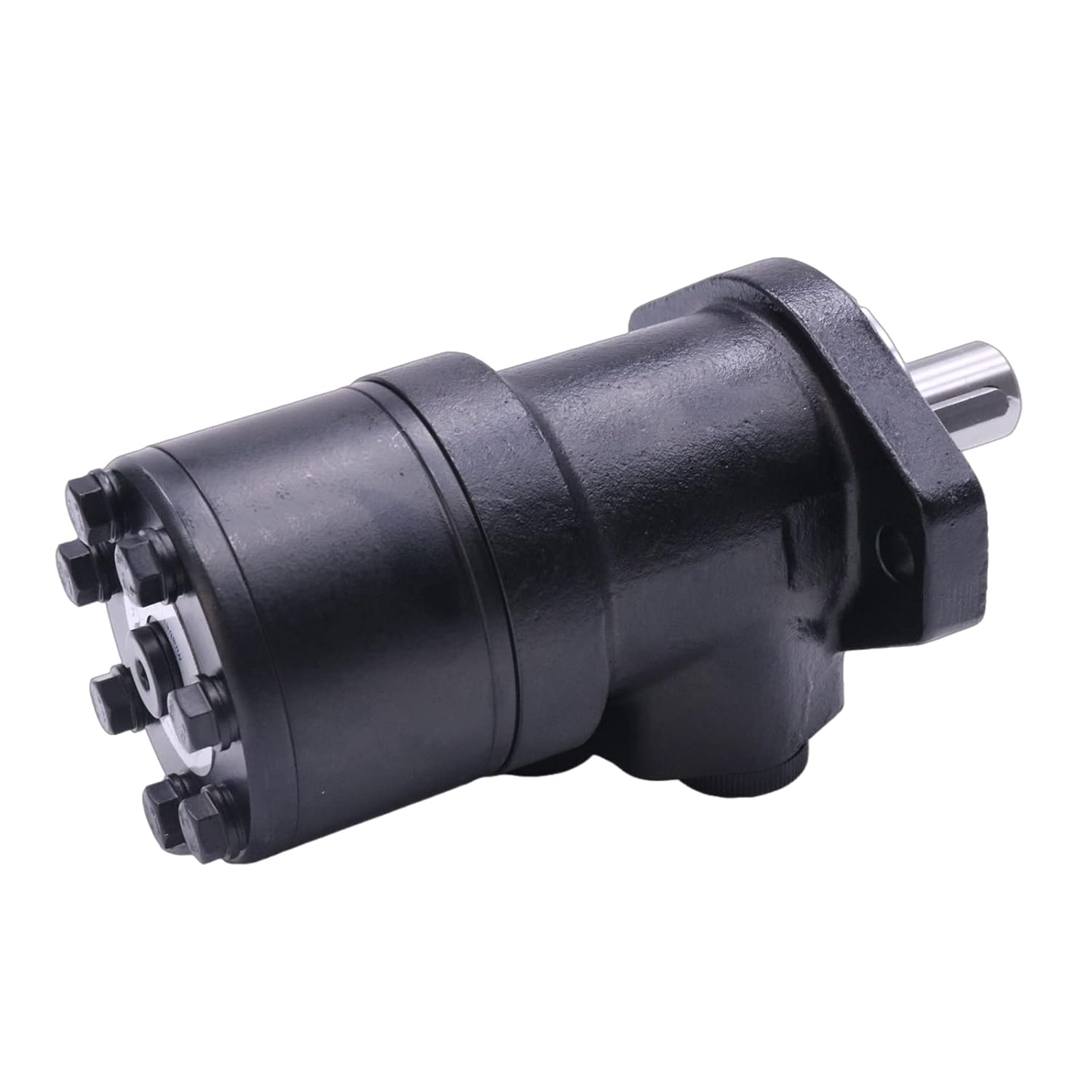

HOLDWELL 25mm 1/2 BSP Hydraulic Orbital Motor OMP x 250-11186711 OMP250-151-0616 OMP250-151-0316

OMP X 250 Low Speed High Torque motor, Geometric Displacement 242.3cm³Part Number: OMP x 250 - 11186711 OMP250 - 151-0616 OMP250 - 151-0316 BMP-250-2ADN1 Main Specification: Motor size: 250 Geometric displacement( cm^3[in]): 242,3[14.83] Max speed cont: 250 rpm Max speed int: 310 rpm Max torque cont(Nm[lbf in]): 300[2660] Max torque int(Nm[lbf in]): 410[3630] Max output power cont(kW[hp]): 6,0[8.1] Max output power int(kW[hp]): 9,0[12.1] Max pressure drop cont(bar[psi]): 90[1310] Max pressure drop int(bar[psi]): 125[1810] Max pressure drop peak(bar[psi]): 180[2610] Max oil flow cont(l/min[gpm]): 60[15.9] Max oil flow int(l/min[gpm]): 75[19.8] Max starting pressure with unloaded shaft(bar[psi]): 5[75] Min starting torque at max press drop cont(Nm[lbf in]): 280[2480] Min starting torque at max press drop int(Nm[lbf in]): 390[3450] Max inlet pressure cont(bar[psi]): 175[2540] Max inlet pressure int(bar[psi]): 200[2900] Max inlet pressure peak(bar[psi]): 225[3260] Max return pressure with drain line cont(bar[psi]): 175[2540] Max return pressure with drain line int(bar[psi]): 200[2900] Max return pressure with drain line peak(bar[psi]): 225[3260]

• Part Name: Hydraulic Orbital Motor
• Part Number: OMP x 250 - 11186711 OMP250 - 151-0616 OMP250 - 151-0316 BMP-250-2ADN1
• Cylindrical output shaft 25mm with 1/2 BSP side ports
• New Aftermarket
• If you have any questions about our products, please feel free to contact us.
